Difference between standard NPT model and the OEM or "press-fit" model

Field Housing 1/4" NPT Connections
V18312H-62221120

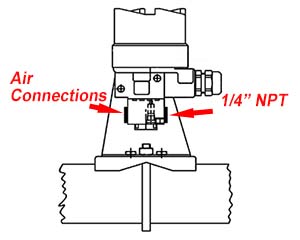

drawing showing NPT connections

I/P without a volume booster suitable for pipe or wall mount with 1/4" NPT Process Connections
4-20 ma to 3-15 psi

OEM [Press-Fit] Connections
V18312H-63221120

ABB Press-fit I/P

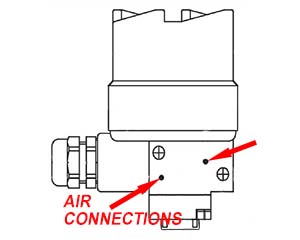

I/P without a volume booster for connecting directly to a positioner or volume booster using "O" ring seals
4-20 ma to 3-15 psi

Type 22/06-67 I/P field mount without booster for Hazardous Areas

Link to larger image for lable Side View 1 side view 2 side view 3 bottom view This TEIP11 current to pneumatic converter (I/P) is meant to be used with a pneumatic positioner, such as the AV1 in the form of the AV27, or a volume booster. It can use a supply pressure from 30-145 psi, and is meant to be field mounted and has agency certifications for FM, CSA and ATEX. The images shown here are just one version of the Type 22/06-67 series I/P, orinally made by Sensycon which is now part of ABB. Please see the specifications for additional US and ATEX models

Click on images to see larger view of the NPT connection I/P.

The following questions are good starting point and we will be happy to assist you to find the correct model
  1. Is this used on a positioner or volume booster?
  2. Is the area rated as a hazardous area, and if so what is the agency certification needed?
  3. Will this be outside or in a control room enviroment?
  4. Input: ma or
  5. Output: psi
  6. What are the connections to the I/P
    NPT
    O-ring
  7. Is this part of another unit such as a positioner etc?

The particular model shown is the V18312H-622211200 which was previously know as (5220667 102778) in the USA



Category Code Description
Type or Model V18312H- TEIP11 - this unit is meant to be used with a positioner and volume booster
Explosion protection 6 FM/CSA approval for "intrinsically safe" and "explosion proof" Note that IS bariers are required if this is going to be used in a Hazardous Area. These are usually installed in a general purpoae are such as a controls room.
Design 2 Aluminum field housing, IP 65 for wall or pipe mounting
Input Signal 2 4 - 20 ma
Output Signal 2 3 - 15 psi
Action 1 Direct
Ambient Temperature 1 -40 to 85 °C
Air Supply Pressure 2 3 bar (45 psi)
Design 0 Standard
