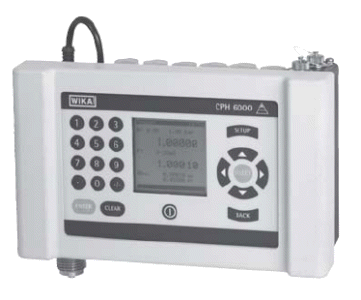

Hand-Held Pressure Indicator CPH 6000 |
Features
• Digital instrument with external transmitter
• Pressure ranges: from 0 to
30 in Hg VAC (0 to 250 mbar) up to 0 to 15,000 psi (0 ... 1,000 bar)
• Certified accuracy: 0.025%
• Data Logger evaluation
software GSoft, Calibration software EasyCal and fully cased service sets
(incl. pumps) available
Functionality
In the set-up menu there are three operating modes to
choose from: MEASURING / CALIBRATION and PRESSURE-SWITCH TEST. In the
CALIBRATION and PRESSURE-SWITCH TEST modes respectively, calibration data
for several calibrations can be stored or the switching hysteresis can be
automatically determined, with the help of a menu assistant. The
electrical and signal connections for the test devices are pro-tected
against rough conditions in the field by captive rubber covers.
Data Sheet (PDF
405 KB) |
|
Basic Kits and Models |
| 12191001 |
Kit 1 Includes: hand held digital unit, battery charging cable, test
cables, free space for 5 transmitters and additional cables |
| 12230049 |
Kit 2 Includes:
hand held digital unit, battery charging cable, test cables, free space
for 5 transmitters and additional cables with pneumatic hand pump -28 in
Hg |
| 12228550 |
CPH 6000
Instrument Only |
|
Individual Transmitters for CPH 6000 |
|
Model |
Range |
|
Model |
Range |
| 50267736 |
0 to 30 inHg Vac |
50267866 |
0 to 500 psi |
| 50267744 |
0 to 5.0 psi |
50267876 |
0 to 750 psi |
| 50267752 |
0 to 10.0 psi |
12208540 |
0 to 1000 psi |
| 50267761 |
0 to 15.0 psi |
50267884 |
0 to 1500 psi |
| 50267779 |
0 to 30 psi |
50267892 |
0 to 2000 psi |
| 50267795 |
0 to 60 psi |
50267906 |
0 to 3000 psi |
| 50267817 |
0 to 100 psi |
50267914 |
0 to 5000 psi |
| 50267825 |
0 to 160 psi |
50267922 |
0 to 14500psi |
| 50267833 |
0 to 200 psi |
50267931 |
0 to 10,000psi |
| 50267841 |
0 to 300 psi |
50267949 |
0 to 15,000psi |
|
|
Options and Accessories for CPH 6000 |
| 2398736 |
NIST
traceable certificate (lists instrument and transmitter as a matched set |
| 9064923 |
G1/2A to 1/2"
NPT male Stainless Steel Adapter |
| 9074929 |
G1/2A to 1/4"
NPT male Stainless Steel Adapter |
| 9091173 |
Teflon sealing
washer for above adapters |
| 11031654 |
Increased protection IP53 (front) IP54 (rear) |
| 11076101 |
Extension Cable
3.6 ft. (1.1 m) |
| 12266767 |
PrintCal - data is can be printed for
calibration certificate |
| 2444505 |
RS232 Interface
Cable |
| 11105186 |
USD Interface
Cable |
|
|
