Mcmenon FGM3200 Armored Purgemeters
- FAM3225: Analog indicator with / without alarm, vertical screw connection
- FAM3255: Analog indicator with angular position transmitter, vertical screw connection
Options:
- Differential Pressure Regulator for Constant Flow
- 4-20ma Analog Output
- Indicator with Min. Alarm
- Indicator with Max. Alarm
- Indicator with Min. / Max. Alarm
Model 10A3220

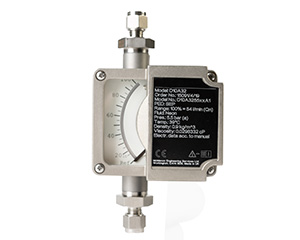

McMenon Armored Purge with compression fittings
Model 10A3220

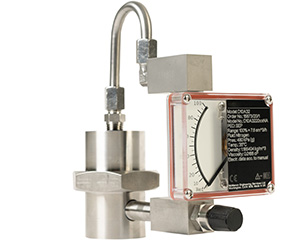

McMenon armored Purge with Differential Controller
10A3220 Armored Purge Meter with Differential Pressure Regulator 1/4"
- The Constant Differential Pressure Regulator maintains a constant flow with varying line pressures. It is available in stainless steel and viton with buna-n as an option
- Measures from .03 to 26 GPH; 0.17 to 115 SCFH
- Optional Minimum and or Maximum Alarms
- Optional 4-20 ma transmitter
- Max Pressure: 200 psig
- Temperature:
Viton: 300 °F
Buna-N: 248 °F
Kalrez: 285 °F - Accuracy: ±6% Full Scale
- Reproducibility: ±0.5% F.S.

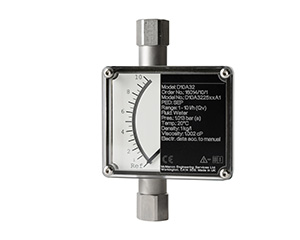

10A3255 Armored Purge Meter with Vertical Connections
- Suitable for most low flow, high pressure and corrosive applications in municipal and industrial settings. Used for gas analyzer systems, various sampling systems, and situations where glass meter tubes are not appropriate for safety reasons.
- Measures from 0.26 to 210 GPH; 11.5 to 880 SCFH
- Optional Minimum and or Maximum Alarms
- Optional 4-20 ma transmitter
- Max Pressure: 1450 psig
- Temperature:
Viton: 300 °F
Buna-N: 248 °F
Kalrez: 285 °F - Accuracy: ±6% Full Scale
- Reproducibility: ±0.5% F.S.
External Module for Relay Alarms
- Supply Voltage: 120V ac ±15%, 45-65 Hz
- Contact Rating: Max. 250V; Max. 2A
- Sensor Switch Cable: Standard - 6.5 feet
Optional - up to 980 feet - Safety Classification: The sensor(s) is intrinsically safe for Class I, Div. 1, Group A, B, C & D and ClassII, Div. 1, Group E, F & G when connected with control amplifier mounted in non-hazardous location.
| CHANNEL | TYPE | SUPPLY | MODEL | PART NUMBER |
|---|---|---|---|---|
| 1 | SPDT | 115 VAC | KFA5-SR2-Ex1.W | P/N163A012U01 |
| 1 | SPDT | 220 VAC | KFA6-SR2-Ex1.W | P/N 163A012U05 |
| 1 | DPDT | 115 VAC | KFA5-SR2-Ex1. W. LB | P/N 163A012U03 |
| 1 | DPDT | 220 VAC | KFA6-SR2-Ex1. W. LB | P/N 163A012U04 |
| 2 | SPDT | 115 VAC | KFA5-SR2-Ex2.W | P/N 163A012U02 |
| 2 | SPDT | 220 VAC | KFA6-SR2-Ex2.W | P/N 163A012U06 |
| 1 | SPDT | 24 VDC | KFD2-SR2-Ex1.W | P/N D163A011U03 |
| 2 | SPDT | 24 VDC | KFD2-SR2-Ex2.W | P/N D163A011U06 |
| 1 | DPDT | 24 VDC | KFD2-SR2-Ex1.W.LB | P/N 163A012U07 |
