McMenon FGM1190 Glass Tube Rotameter

FGM1190-98 - Glass Tube Variable Area Flowmeter, with vertical flange connection
FGM1190-97 - Glass Tube Variable Area Flowmeter, with vertical screw connection
FGM1190-95 - Glass Tube Variable Area Flowmeter, with horizontal screw connection
FGM1190-87 - Glass Tube Variable Area Flowmeter, with pipe union connection

McMenon FGM1190 Glass Tube Rotameter Data Sheet

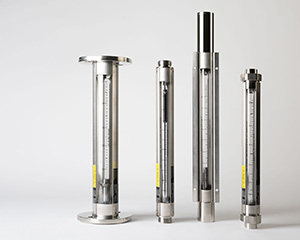

Glass tube rotameter (Sizes ½, ¾, 1, 1½, 2") with NPT or flanged connections, Snap-in tube and protective shield, Optional alarms. Used for monitoring fluid flows (gas or liquid) in variety of applications.

Model FGM1190-98

McMenon Model FGM1190-98 Vertical Flange Connections 1/2 to 2 inch

Model FGM1190-87

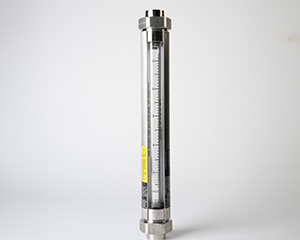

McMenon FGM1190-87
Pipe Union Connections 1/4 to 2 inch

Model FGM1190-97

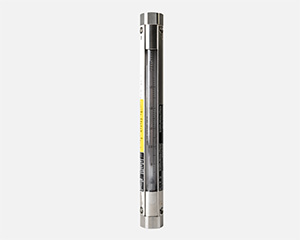

McMenon Model1190-97
Vertical Screw Connections 1/4 to 2 inch

Model FGM1190-95

McMenon FGM1190-95
Horizontal Screw Connections 1/2 to 1 inch

Materials of Construction

Glass Tubes: high strength - borosilicate glass, scratch resistant, snap-in tubes, easy to remove, replace & clean
Rugged Frame Body:300 series stainless steel for corrosion resistance and strength, resists bending during installation
Versatile Mounting: in-line, front panel or rear panel
Protective Safety Shield: polycarbonate shield is standard for operator protection, snap-in design for easy removal
Variety of Floats: Choice of materials and configurations to match the specific application, easily removable
Choice of Scales: percent (%) of flow, direct reading in engineering units, or millimeters.

External Module for Relay Alarms

Supply Voltage:: 120V ac ±15%, 45-65 Hz
Contact Rating:: Max. 250V; Max. 2A
Sensor Switch Cable:: Standard - 6.5 feet
Optional - up to 980 feet
Safety Classification:: The sensor(s) is intrinsically safe for Class I, Div. 1, Group A, B, C & D and Class II, Div. 1, Group E, F & G when connected with control amplifier mounted in non-hazardous location.

CHANNEL	TYPE	SUPPLY	MODEL	PART NUMBER
1	SPDT	115 VAC	KFA5-SR2-Ex1.W	P/N163A012U01
1	SPDT	220 VAC	KFA6-SR2-Ex1.W	P/N 163A012U05
1	DPDT	115 VAC	KFA5-SR2-Ex1. W. LB	P/N 163A012U03
1	DPDT	220 VAC	KFA6-SR2-Ex1. W. LB	P/N 163A012U04
2	SPDT	115 VAC	KFA5-SR2-Ex2.W	P/N 163A012U02
2	SPDT	220 VAC	KFA6-SR2-Ex2.W	P/N 163A012U06
1	SPDT	24 VDC	KFD2-SR2-Ex1.W	P/N D163A011U03
2	SPDT	24 VDC	KFD2-SR2-Ex2.W	P/N D163A011U06
1	DPDT	24 VDC	KFD2-SR2-Ex1.W.LB	P/N 163A012U07
