SV73 3-way, balanced poppet inert solenoid valves.
Pressure Rating: 145 PSIG, Vacuum: -5.7 PSIG
Flow: Cv of 4.0
Voltage: 115 VAC, 12, 24 VDC
Power: 20 Watts
Temperature:
     Fluid: 40°F to 185°F
     Ambient: 40°F to 120°F
Leak Rate: 5 Drop/ min @ 145 PSIG
Wetted Materials*: Noryl or Ryton Body
     with EPDM or VitonŽ
Response Time: 250 msec
Weight:
Size: 7.5" H x 3.25" W x 1.8"D
Ports: 3/4" FNPT
*Consult factory for other options

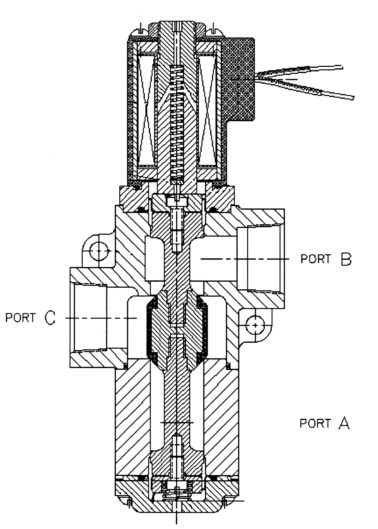

The Valcor SV73 series are 3-way, balanced poppet inert solenoid valves. These valves are designed for the control of corrosive fluids by isolating all the metal components from the operating media. This series employs two rolling diaphragms, acting both as isolating barriers and as balancing areas. Their high flow and pressure capability allows
them to be used in such applications as chemical dispensing and the control of wash or buffer solutions.
