Current to Pneumatic I/P Converters

home > abb > I/P (current to pneumatic) converters

ABB's line of Sensycon (Hartmann & Braun) I/P converters and P/I converters are compact, immune to shock/vibration, and come in Explosion Proof, NEMA 4X and DIN rail configurations. ATEX approved units are available by special order. Models are available with VOLUME BOOSTERS which provide a higher flow rate for direct controls of valves etc. but have a lower supply pressure Those I/Ps without booster are meant to be attached to positioners etc. and have a higher supply pressure rating. Note ABB has changed their Model Numbers - old numbers are shown in ( ).

Standard I/P (Current to Pneumatic) Converters (TEIP 11)

Model Index and Cross Reference

"Type" Numbers

Request for Quotation

Please call, fax or email for resale, OEM, and quantity pricing.

Click Picture for Closeup	Model Area Class Case Supply Press.	Input	Output	Part Number	List Price	Delivery	Datasheet (PDF)
UNITS WITH VOLUME BOOSTER TO DIRECTLY CONNECT TO ACTUATORS
	22/06-69 EXP FM CSA Aluminum Case 1/4" NPT 20 psig	4-20 ma	3-15 psi	V18311H-782210100 (5220669 102770)	$492	Stock	datasheet RFQ
			1-18 psi	V18311H-782010100511 (5220669 102772)	$556	Call
			3-27psi	V18311H-782010100512 (5220669 102771)	$526	Call
			6-30 psi	V18311H-782010100509 (5220669 102774)	$500	Call
	22/06-68 EXP FM CSA SS Case 1/4" NPT 20 psig	4-20 ma	3-15 psi	V18311H-792210100 (5220668 102780)	$1,205	Call	datasheet RFQ
			1-18 psi	V18311H-792010100511 (5220668 102782)	$1,270	Call
			3-27psi	V18311H-792010100512 (5220668 102781)	$1,240	Call
			6-30 psi	V18311H-792010100509 (5220668 102784)	$1,240	Call

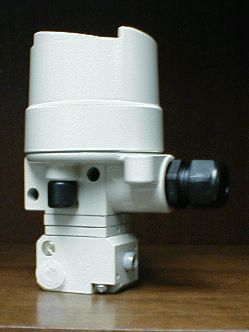

	NEMA 4X Aluminum Case 1/4" NPT 20 psig	4-20 ma	3-15 psi	V18311H-182210100 (18311-0-182210170)	$378	Stock	datasheet RFQ
	22/06-65 General Purpose Area DIN 1/8" NPT 20 psig	4-20 ma	3-15 psi	V18311H-612210100 (5220665 102730)	$356	Stock	datasheet RFQ
			1-18 psi	V18311H-612010100511 (5220665 102732)	$420	Call
			3-27psi	V18311H-612010100512 (5220665 102731)	$420	Call
			6-30 psi	V18311H-612010100509 (5220665 102734)	$420	Call
UNITS WITHOUT VOLUME BOOSTER TO CONNECT TO PNEUMATIC POSITIONERS, ETC.
	22/06-67 EXP FM CSA Aluminum Case 1/4" NPT 30 to 145 psig	4-20 ma	3-15 psi Set for 43.5 psi	V18312H-622211200 (5220667 102778)	$485	Stock	datasheet RFQ
	22/06-66 EXP FM CSA SS Case 1/4" NPT 30 to 145 psig	4-20 ma	3-15 psi Set for 72.5 psi	V18312H-642211400 (5220666 102788)	$1,205	Call	datasheet RFQ
	NEMA 4X Aluminum Case 1/4" NPT 30 to 145 psig	4-20 ma	3-15 psi Set for 43.5 psi	V18312H-122211200 (18312-0-122211270)	$370	Stock	datasheet RFQ
SPECIAL UNITS
	22/06-65 for installation inside of Moore positioners 150 psi max	4-20 ma	3-15 psi	7958070	$330	Stock	details
	Please note that we are no longer stocking these kits. Please contact AT Controls					Rush - if available	Instruction Sheet RFQ
	Kit for Sensycon I/P for Moore 760E Positioner	4-20 ma	3-15 psi	15900-378		2-3 weeks	Instruction Sheet RFQ
	HVAC General Purpose Area DIN 1/8" NPT 20 psig	4-20 ma	3-15 psi	5220716-101526 Order P/N 7958057	$255.00	Limited Stock	datasheet RFQ
	Note: this unit is meant for non critical application such as building control; there is no SPAN adjustment
ACCESSORIES
	SS PIPE BRACKET: with an "L" shaped plate for mounting the I/P and a 2" pipe mount and "U" bolt Fits EXP and NEMA 4X versions.			319345 18381-0319345 (5229900 272484)	$48	Stock	datasheet RFQ	RFQ
