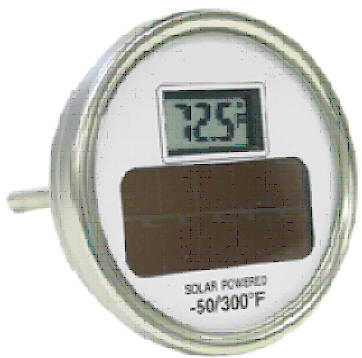

Trend/Wika Solar Industrial Thermometers
free you from toxic mercury while offering fast, accurate, and
easy-to-read temperature indications. |
|
Digital Thermometers - Light
Powered |
|
 |
Back Connected
3"
Diameter dial
+/- 1% of
full scale
Available in Fahrenheit and
Celsius
Ranges of -50°F to 300°F and -50°C to
150°C
SS Case, acrylic lens
1/2" NPT Process Connection
Ordering Guide
|
|
Stem Length |
-50 to 300 °F |
-50 to 300 °C |
| 2-1/2 |
80025D2G4 |
80025D1G4 |
| 4 |
80040D2G4 |
80040D1G4 |
| 6 |
80060D2G4 |
80060D1G4 |
| 9 |
80090D2G4 |
80090D1G4 |
| 12 |
80120D2G4 |
80120D1G4 |
| 15 |
80150D2G4 |
80150D1G4 |
| 18 |
80180D2G4 |
80180D1G4 |
| 24 |
80240D2G4 |
80240D1G4 |
|
 |
Adjustable Angle
3"
Diameter dial
+/- 1% of
full scale
Available in Fahrenheit and
Celsius
Ranges of -50°F to 300°F and -50°C to
150°C
SS Case, acrylic lens
1/2" NPT Process Connection
Order Guide
|
|
Stem Length |
-50 to 300 °F |
-50 to 300 °C |
| 2-1/2 |
82025D2G4 |
82025D1G4 |
| 4 |
82040D2G4 |
82040D1G4 |
| 6 |
82060D2G4 |
82060D1G4 |
| 9 |
82090D2G4 |
82090D1G4 |
| 12 |
82120D2G4 |
82120D1G4 |
| 15 |
82150D2G4 |
82150D1G4 |
| 18 |
82180D2G4 |
82180D1G4 |
| 24 |
82240D2G4 |
82240D1G4 |
|
|
Industrial Thermometers -
Light Powered |
|
Trend Wika Solar
Industrial Thermometers are designed as an alternative to the old
mercury-in-glass industrial thermometers. It does not use mercury
and can be used in applications requiring fast, accurate, and
easy-to-read temperature indications |
 |
Accuracy:
1% of reading or 1 degree
Range:
-50/300 °F(-45/150 °C)
Lux Rating:
10 Lux (one foot candle)
Data Sheet |
|
Part Number |
Description |
|
D010300WI |
3-1/2" Stem, no thermowell |
|
D010600WI |
6" Stem, no thermowell |
|
D010301WI |
3-1/2" Stem, with thermowell |
|
D010601WI |
6" Stem, with thermowell |
|
D010304WI |
3-1/2" Stem, with reversible flange air duct stem |
|
D010604WI |
6" Stem, with reversible flange air duct stem |
|
D0109001WI |
9" Stem, with thermowell |
|
TA600-0216 |
Clear Plastic protective cover |
| |
|
|
