Model CPH7600 Digital Pneumatic Calibrator from Mensor

Welcome to Mensor a part of WIKA Alexander Wiegand SE & Co. KG

Since 1969 Mensor has been designing and manufacturing precision pressure measuring and pressure calibration instruments and systems. From the very first quartz manometer designed for the aerospace industry, to the modern CPC 6000 Automated Pressure Calibrator of today, Mensor, now a part of WIKA Alexander Wiegand SE & Co. KG, specializes in providing quality pressure products and services to a wide variety of industries around the world.

Mensor is now manufacturing the CPH7600 as a replacement for the 65-2000 and 65-2000-II


Mensor CPH7600 with Accessories

CPH7600 with Accessories

The Model CPH7600

  • Includes two pneumatic pressure sources
    • Internal electric pressure pump
      (up to 300 psi)
    • External pressure supply
      (up to 100 psi)
  • Measurement and pressure generation at the touch of a button with integrated electric pump
  • Generation/measurement of 4 ... 20mA and 24 V DC voltage supply to power transmitters
  • Can display up to 3 calibration values simultaneously. For example, an internal pressure sensor, an external pressure sensor and an electrical value (mA or V)
  • NIST traceable calibration certificate supplied

  Special Features:

  • Dual pressure system
  • Pressure accuracy up to 0.025% Rdg. +/- 0.01% FS
  • External pressure supply to 100 psi / 7 bar
  • Internal electric pump -12 to 300 psi /-0.8 to 20 bar
  • Pressure media: clean, dry, non-corrosive gases
  • Pressure units: psi, bar, mbar, kPa, kgcm2, mmH2O@4C, mmH2O@20C, cmH2O@4C, cmH2O@20C, inH2O@4C, inH2O@20C,inH2O@60F, mmHg@0C, inHg@0C
  • Pressure connection: 1/8 NPT female
  • External pressure module interface available
  • Interface: RS232 or USB available
  • Built-in loop calibrator with 24 V DC loop power
  • Internal 250 ohm Hart Resistor
  • Large graphic LCD display with 5 digits
  • Backlight graphic display and sealed membrane for ease of use and durability
  • Robust case design, IP67
  • Long life rechargeable NiMH battery or a universal (90 to 250 VAC) AC main adapter
  • Dimensions/weight: 390 mm x 310 mm x 180 mm, 7 Kg Approx. (15.4 in x 12.2 in x 7.1 in, 15.43 Lbs Approx.)

 Optional Accessories:

  • External transducer CPT6600 pressure module adapter
  • External transducer CPT6600 pressure module (Ranges from 10 inH20 up to 10,000 psi with accuracy of 0.025% FS)
  • Liquid dirt trap LDT-500 with 1/8 inch universal connection

  Specifications
  Comparison to 65-2000-II-E
  Operating Instructions

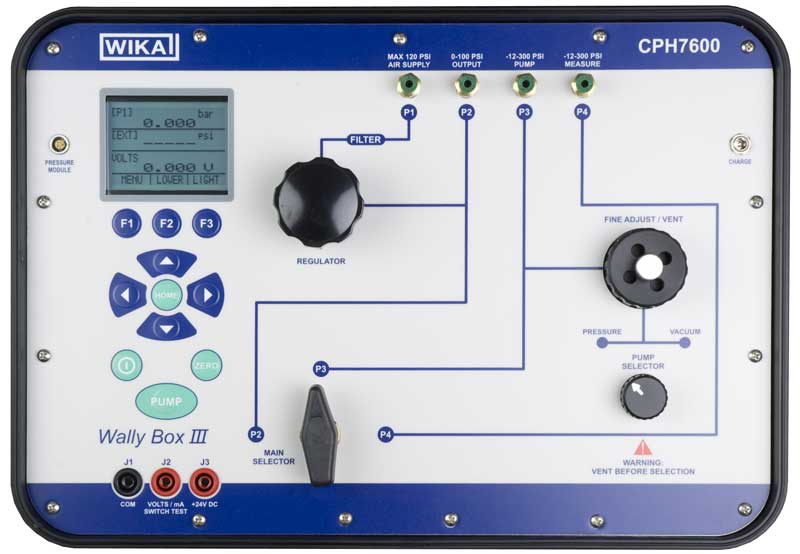

Mensor CPH7600 Front Panel
CPH7600 Front Panel
Click for larger view

Mensor CPH7600 with optional CPT6600 Module
CPH7600 with CPT6600 Module

Mesnor CPT6600 Pressure Module CPT6600 Module

CPT6600 Pressure Module

  Applications:

  • Process industry portable pressure calibration
  • Calibration service
  • Pressure testing

 Features:

  • For use with CPH6600, CEP6000, CEP6100, CED7000
  • Easily interchangeable external pressure modules
  • Accuracy: up to 0.025 % (incl. calibration certificate)
  • Pressure ranges: from 0 … 10 in H2O up to 0 … 10,000 psi
  • Relative, vacuum, absolute, differential pressure

CPT6600 Specifications
