Replacement I/P for Moore (Siemens) 760E Positioner

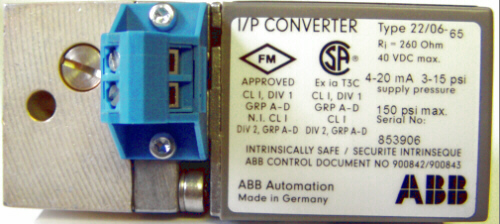

Front view of Sensycon I/P replacement for Moore 760E We are now able to offer the replacement I/P for the Moore 760E positioner. This should drop into existing units having Sensycon or ABB I/P.
The ABB/SENSYCON I/Pcan be identified by the Type number 22/06-65 marked on the label. The input is 4-20ma, output 3-15 psi and the supply pressure is 20-150 psi and that there are NO npt connections or DIN Rail mounting bracket.

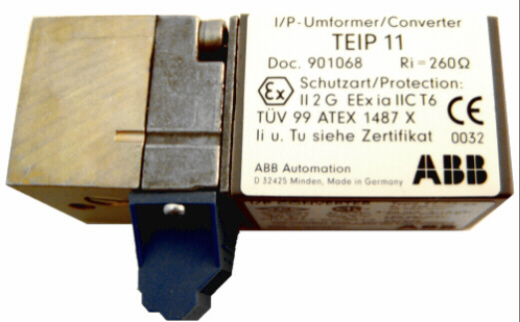

Left side view of Sensycon I/P replacement for Moore 760E

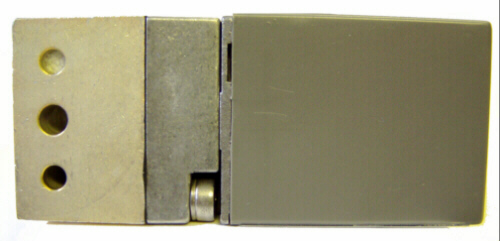

Back view of Sensycon I/P
replacement for Moore 760E

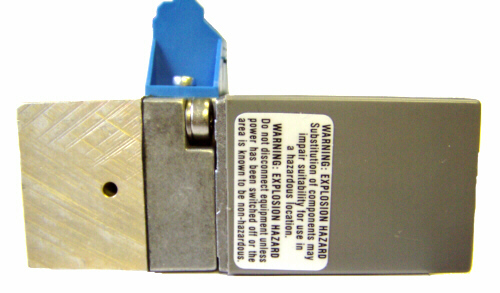

Right side view of Sensycon I/P
replacement for Moore 760E

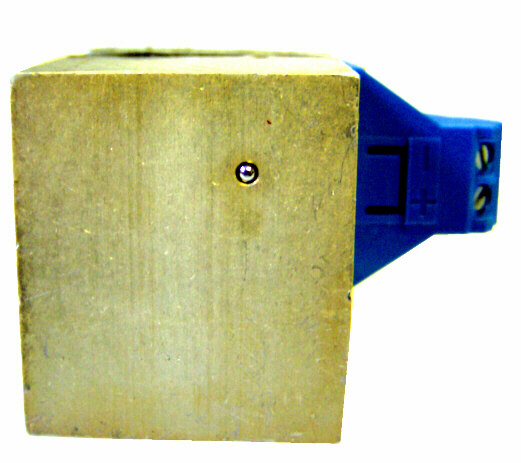

Bottom view of Sensycon
I/P replacement for Moore 760E

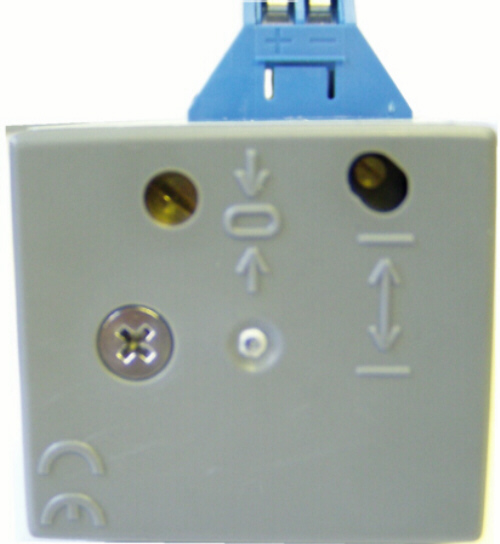

Top view of Sensycon I/P
replacement for Moore 760E
